Specification of Yamaha Vega Force 115
| Dimension & Weight | |
| Overall length x width x height | 1,930mm x 680mm x 1,065mm |
| Seat height | 765mm |
| Wheelbase | 1,235mm |
| Minimum ground clearance | 150mm |
| Weight | 102kg |
| Engine Performance | |
| Engine type | Air-cooled 4-stroke, SOHC, 2-valve |
| Cylinder arrangement | Single cylinder |
| Displacement | 113.7cm3 |
| Bore & stroke | 50.0mm x 57.9mm |
| Compression ratio | 9.3 : 1 |
| Maximum horse power | 6.0kW (7500r/min) |
| Maximum torque | 8.3 N.m (4500r/min) |
| Starting system type | Electric starter and kickstarter |
| Lubrication system | Wet sump |
| Transmission oil volume | 1.0 liters |
| Fuel | |
| Fuel tank capacity | 4.2 liters |
| Carburetor type | VM17 |
| Electrical | |
| Ignition system type | C.D.I. |
| Gear ratio | |
| Primary / Secondary reduction ratio | 3.286 / 2.857 |
| Clutch type | Wet, centrifugal automatic |
| Transmission type | Constant-mesh 4-speed |
| Gear ratios | 1st:2.833; 2nd:1.875; 3rd:1.353; 4th:1.045 |
| Chassis | |
| Frame type | Steel tube underbone |
| Caster angle / trail | 26° 30′ / 76mm |
| Tire size (Front / Rear) | 70/90-17 38P / 80/90-17 44P |
| Brake | |
| Brake type (Front / Rear) | Hydraulic single disc / Drum |
| Suspension | |
| Suspension type (Front / Rear) | Telescopic / Swingarm |
| Bulbs (voltage/wattage quantity) | |
| Headlight, front flasher lights | 12V, 2, 25W / 25V, 2, 10W |

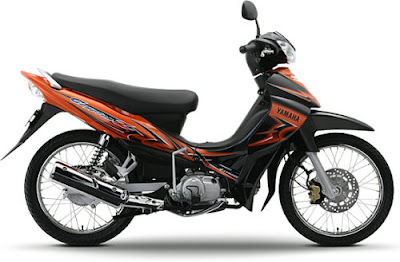

Yamaha Crypton Z 110
Specifications of Yamaha Crypton Z 110
Engine
Type: Air cooled 4-stroke,SOHC,2valve
Cylinder arrangement: Single cylinder
Displacement: 110.3 cc
Bore x stroke: 51.0 x 54.0mm
Compression ratio: 9.3 : 1
Maximum horse power: 6.6kW @ 8000 rpm
Maximum torque: 9.0 N.m @ 5000 rpm
Starting system type: Electric starter and kickstarter
Lubrication system: Wet sump
Air filter type: Dry Paper
Carburetor Type/Fuel supply: VM17 X 1
Ignition system type: C.D.I.
Spark plug model: C6HSA
Drive Train
Primary reduction system: Gear
Primary reduction ratio: 67/18 3.722
Secondary reduction system: Chain drive
Secondary reduction ratio: 36/15 2.400
Clutch type: Wet, centrifugal automatic
Transmission type: Constant mesh 4-speed
Operation: Left foot operation
Gear ratio-1st gear: 38/12 (3.166)
Gear ratio-2nd gear: 33/17 (1.941)
Gear ratio-3rd gear: 29/21 (1.380)
Gear ratio-4th gear: 23/21 (1.095)
Chassis
Frame type: Steel tube backbone
Caster angle: 26.2°
Trail: 74 mm
Brake type (Front): Hydraulic single disc brake
Brake type (Rear): Drum brake (Leading, trailing)
Inside diameter of drum / Effective radius of disc (Front): 193mm
Inside diameter of drum / Effective radius of disc (Rear): 130mm
Suspension type (Front): Telescopic fork
Suspension type (Rear): Swingarm
Shock absorber assembly type (Front): Coil spring/oil damper
Shock absorber assembly type (Rear): Coil spring/oil damper
Wheel travel (Front): 95mm
Wheel travel (Rear): 77mm
Tire size (Front): 70/90-17 38P
Tire size (Rear): 80/90-17 44P
Electrical
Battery voltage/capacity: 12V, 5AH(10H)
Headlight bulb type: Incandescence bulb
Headlight: 2, 25W/25W
rake/tail light: 1, 5W/21W
Turn signal light(Front): 2, 10W
Turn signal light(Rear): 2, 10W
Dimension/weight/capacity
Overall length: 1910 mm
Overall width: 680 mm
Overall height: 1045 mm
Seat height: 760 mm
Wheelbase: 1225 mm
Minimum ground clearance: 130 mm
Dry(without oil and fuel): 98 Kg
Wet(with oil and a full fuel tank): 102 Kg
Fuel tank capacity: 4.5 L
Engine oil capacity: 1.0 L
|
|
|
|
|
